    RailFasteners

    Rail Clip

    Rail Clip

    产品介绍：
    立即购买 在线留言
    产品详情

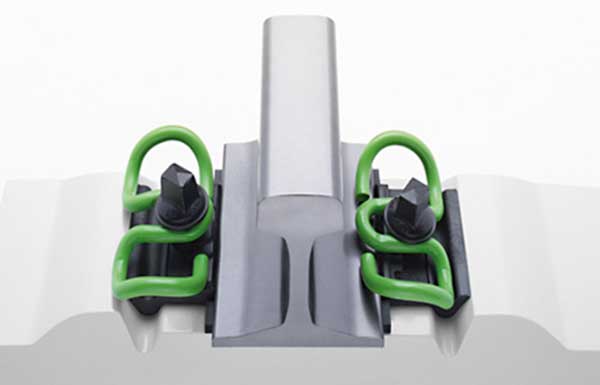

     Rail clip, or called elastic rail clip, is used to fasten steel rails to the underlying tie plate. Through bending and distortion, rail clip can put pressure on the rail, which prevents longitudinal movement of the rail, either from changes in temperature or through vibration. In general, rail clips are made of forged spring steel produced by hot forging process. Because of the most uniform microstructure, the forged rail clips are considered to be better than other metal forming process.

    Varieties of rail clips



    SeriesTypeHardnessMaterialFatigue lifeSurfaceStandard








    E rail clip

    		E1,E2,E3






    44-48HRC






    60Si2MnA:
    C:0.56-0.64,Mn:0.60-0.90,
    Si:1.60-2.00,Cr:≤0.35, P:≤0.03, S:≤0.03

    60Si2CrA:
    C:0.56-0.64,Mn:0.40-0.70,
    Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03

    55Si2Mn:
    C:0.52-0.60,Mn:0.60-0.90,
    Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03

    38Si7:C:0.35-0.42,Mn:0.50-0.80,
    Si:1.50-1.80, P:≤0.03, S:≤0.03











    For Dia.18 is 3 million cycles
    without breaking.


    For Dia.20 is 5 million cycles
    without breaking.














    plain (oiled), Oxide black, color painting or according to customer requirement.















    DIN17221, BS970, GB/T1222
    E1609
    E1809
    E1817
    E2001
    E2006
    E2009
    E2055
    E2056


    Vossloh clip&
    Forged rail clip


    SKL1


    42-47HRC

    PR rail clip    		PR309


    44-48HRC
    PR401
    PR601
    PR85
    Customized production of rail clips are available according to your drawings or samples!

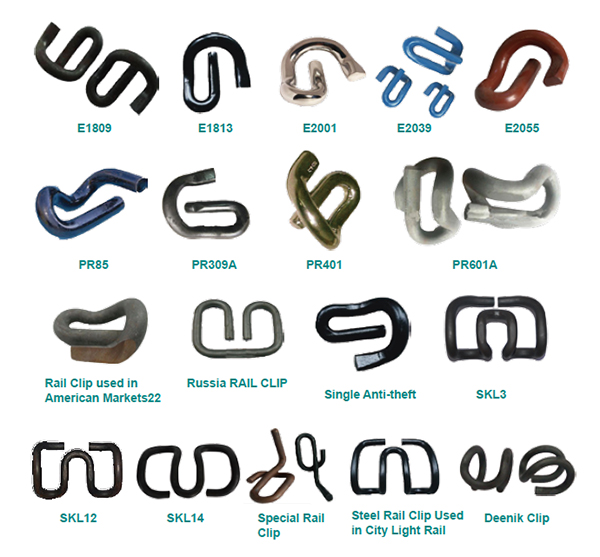

    Parameters of Main Rail Clip Products



    ModelDiameterWeightMaterial
    Type IIIØ180.80kg/pc60Si2MnA
    E1609Ø160.43 kg/pc60Si2MnA
    E1809Ø200.61kg/pc60Si2MnA
    E1813Ø180.62kg/pc60Si2MnA
    E2001Ø200.80kg/pc60Si2MnA
    E2007Ø200.80kg/pc60Si2MnA
    E2009Ø200.80kg/pc60Si2MnA
    E2039Ø200.80kg/pc60Si2MnA
    E2055Ø200.80kg/pc60Si2MnA
    E2056Ø200.80kg/pc60Si2MnA
    E2063Ø200.80kg/pc60Si2MnA
    PR85 Rail ClipØ130.25kg/pc60Si2MnA
    PR309AØ190.85kg/pc60Si2MnA
    PR401Ø200.97kg/pc60Si2MnA
    PR415Ø200.95kg/pc60Si2MnA
    PR601AØ201.03kg/pc38Si7
    SKL 1Ø130.48kg/pc60Si2CrA
    SKL 3Ø130.48kg/pc60Si2CrA
    SKL 12Ø130.53kg/pc38Si7
    SKL 14Ø130.53kg/pc60Si2MnA
    Special Rail ClipØ130.48kg/pc60Si2MnA
    Russia Rail ClipØ180.58kg/pc60Si2MnA
    Deenik ClipØ250.49-0.68kg/pc60Si2MnA
    Single Anti-
    Theft    		Ø200.25kg/pc60Si2MnA
